JBL Control 23 - Compact Two-Way Loudspeakers - White

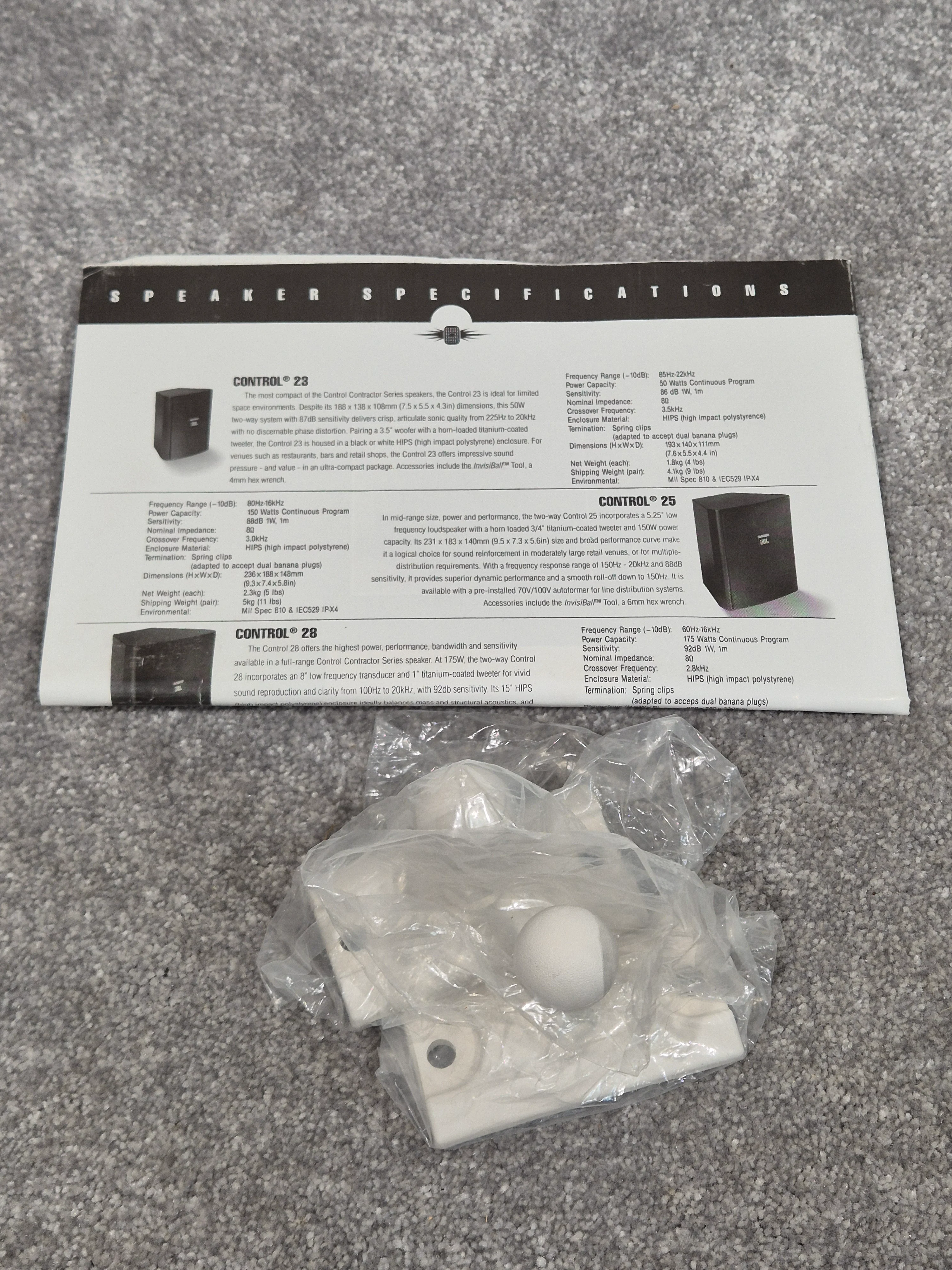

Excellent condition, fully tested and both speakers work perfectly. One of the speakers has broken plastic cover for the wall mounts. Original box, manuals and speaker mounts included.

JBL Control 23 key features:

• Frequency Range (+/-10 dB): 70 Hz to 20 kHz.

• Frequency Response (+/-3 dB): 95 Hz - 19 kHz.

• Power Rating: 100W Continuous Program (2 hrs), 50 W (200W peak), Continuous Pink Noise (2 hrs), 40 W (160W peak) Continuous Pink Noise (100 hrs).

• Maximum Input Voltage: 17.2 V RMS (2 hrs), 34.4 V peak.

• Maximum SPL: 103 dB average continuous pink noise (109 dB peak).

• Sensitivity: 86 dB, 1W/1m (average 100 Hz – 10 kHz).

• Coverage Angle: 100° x 100°.

• Directivity Factor (Q): 5.8 (averaged 1kHz – 16kHz).

• Directivity Index (DI): 7.2 dB (averaged 1kHz – 16kHz).

• Nominal Impedance: 8 ohms (THRU setting)

• Crossover Type: 2nd order low-pass, 2nd order high-pass.

• Transformer Taps: 70V: 15W, 7.5W, 3.7W, 1.8W; 100V: 15W, 7.5W, 3.7W.

• High-Pass: 70 Hz high-pass (24 dB/oct) (for 8Ω operation and for all 70V/100V taps settings).

• Low Frequency Driver: 76 mm (3.0 in), woven-fiberglass cone with pure butyl rubber surround, high-temp Kapton™ voice coil former, high-temp voice coil wire, optimised cone geometry, linear suspension spider, and FEA optimised motor structure.

• High Frequency Driver: 13 mm (0.5 in) PEI diaphragm, low-viscosity ferro-magnetic fluid, and lightweight Kapton™ voice coil former.

• Enclosure Material: High Impact Polystyrene (HIPS), painted with highly-UV resistant paint on white (-WH) version for maximum UV fade resistance.
