Name: Sennheiser ASP 1 - Antenna Splitter - Good Condition w/ Various Cables
Brand: Audio Trader
SKU: sennheiser-asp-1-antenna-splitter-good-condition-w-various-cables
Availability: InStock

Home Store

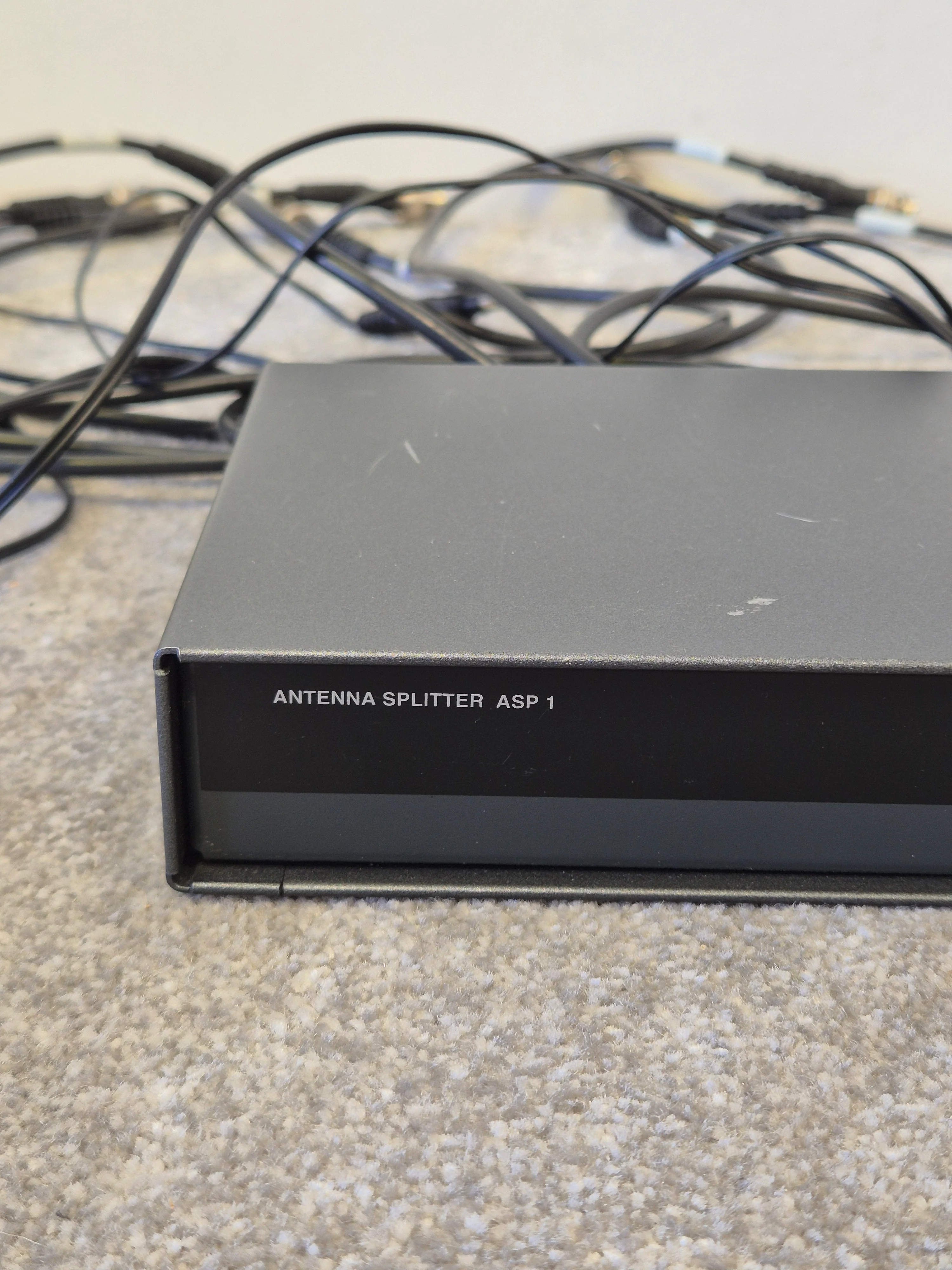

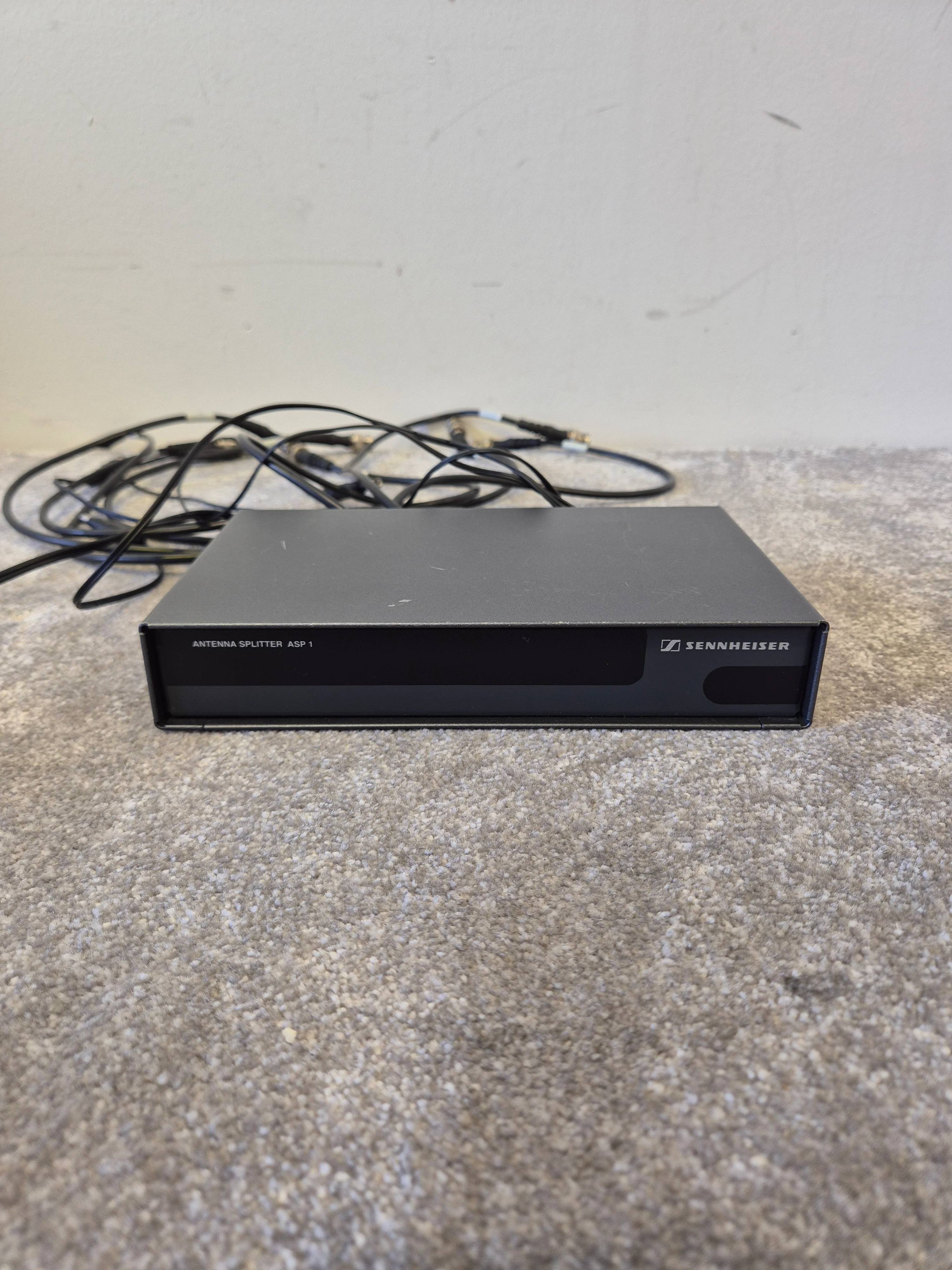

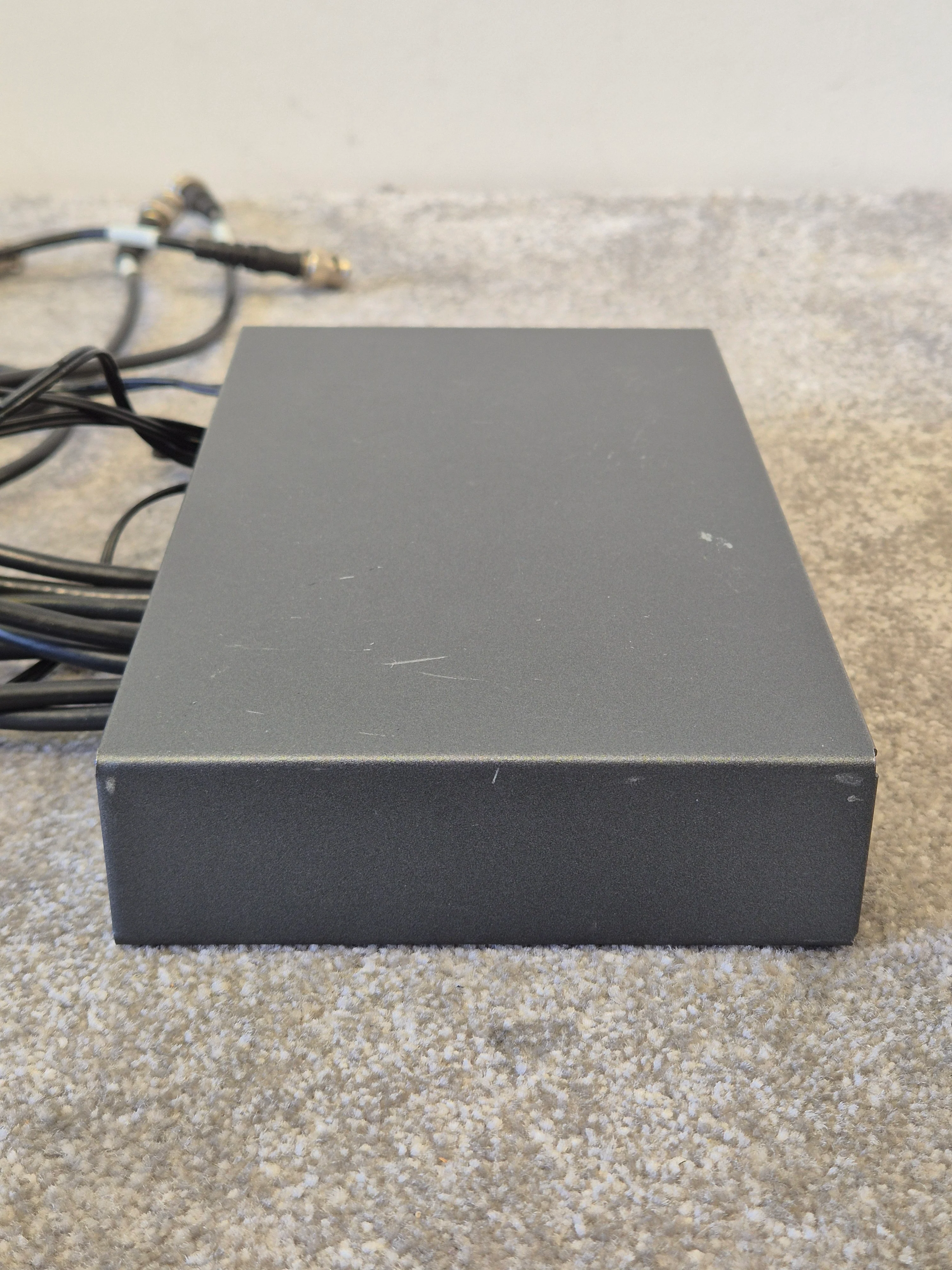

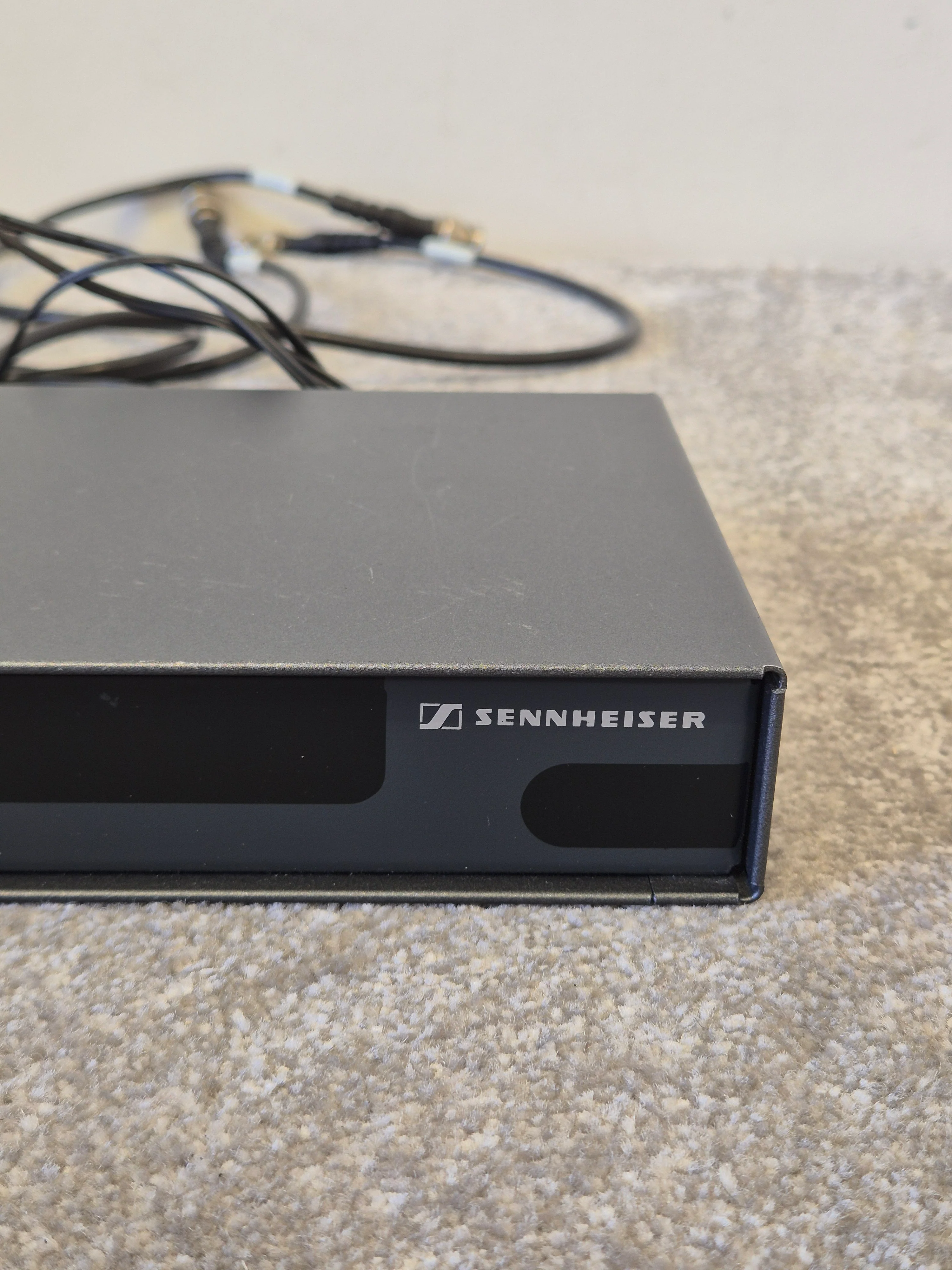

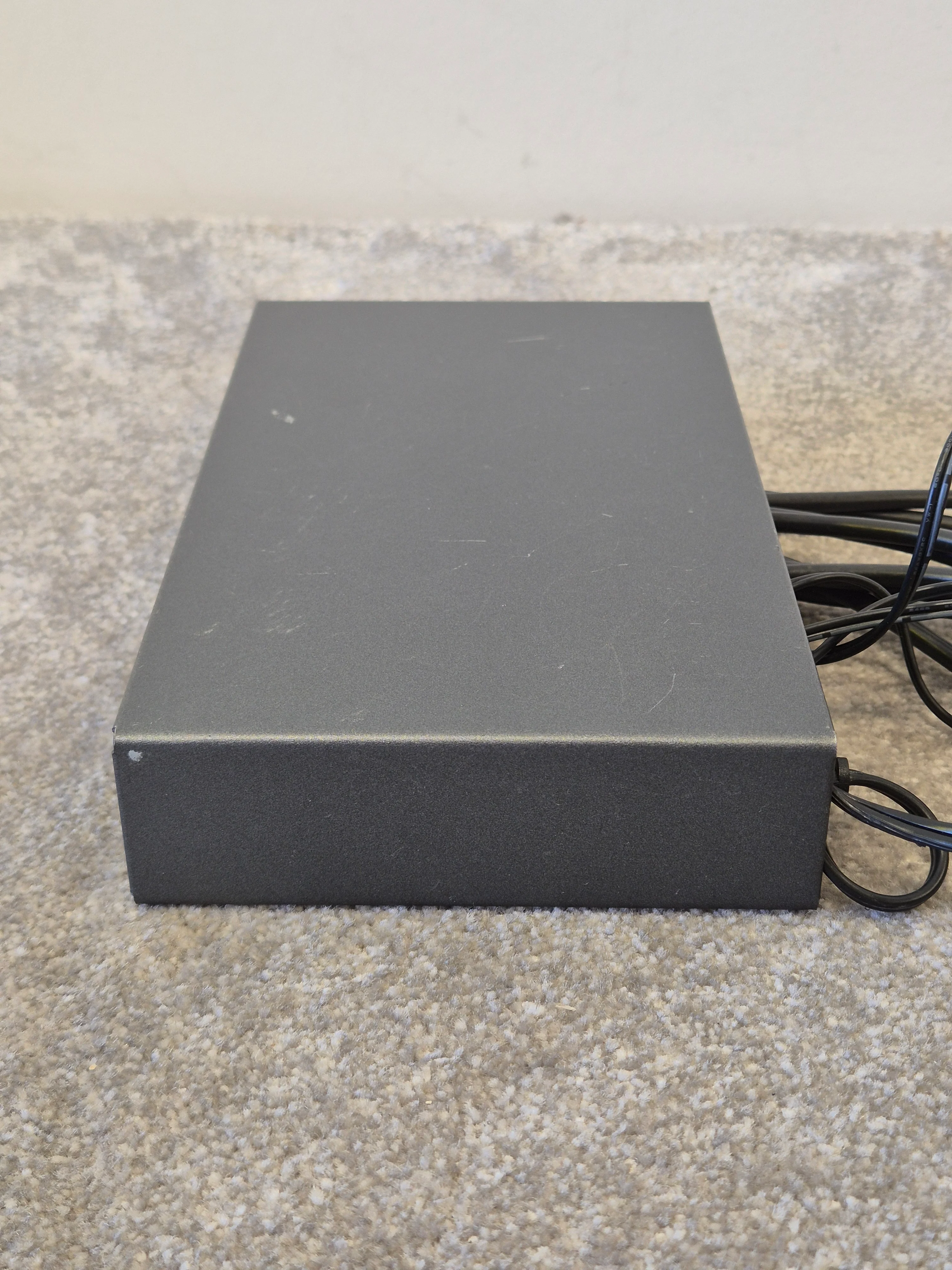

Sennheiser ASP 1 - Antenna Splitter - Good Condition w/ Various Cables

$144.30

Sennheiser ASP 1 - Antenna Splitter - Good Condition w/ Various Cables—

$144.30

Sennheiser ASP 1 - Antenna Splitter - Good Condition w/ Various Cables—

$144.30

The Story

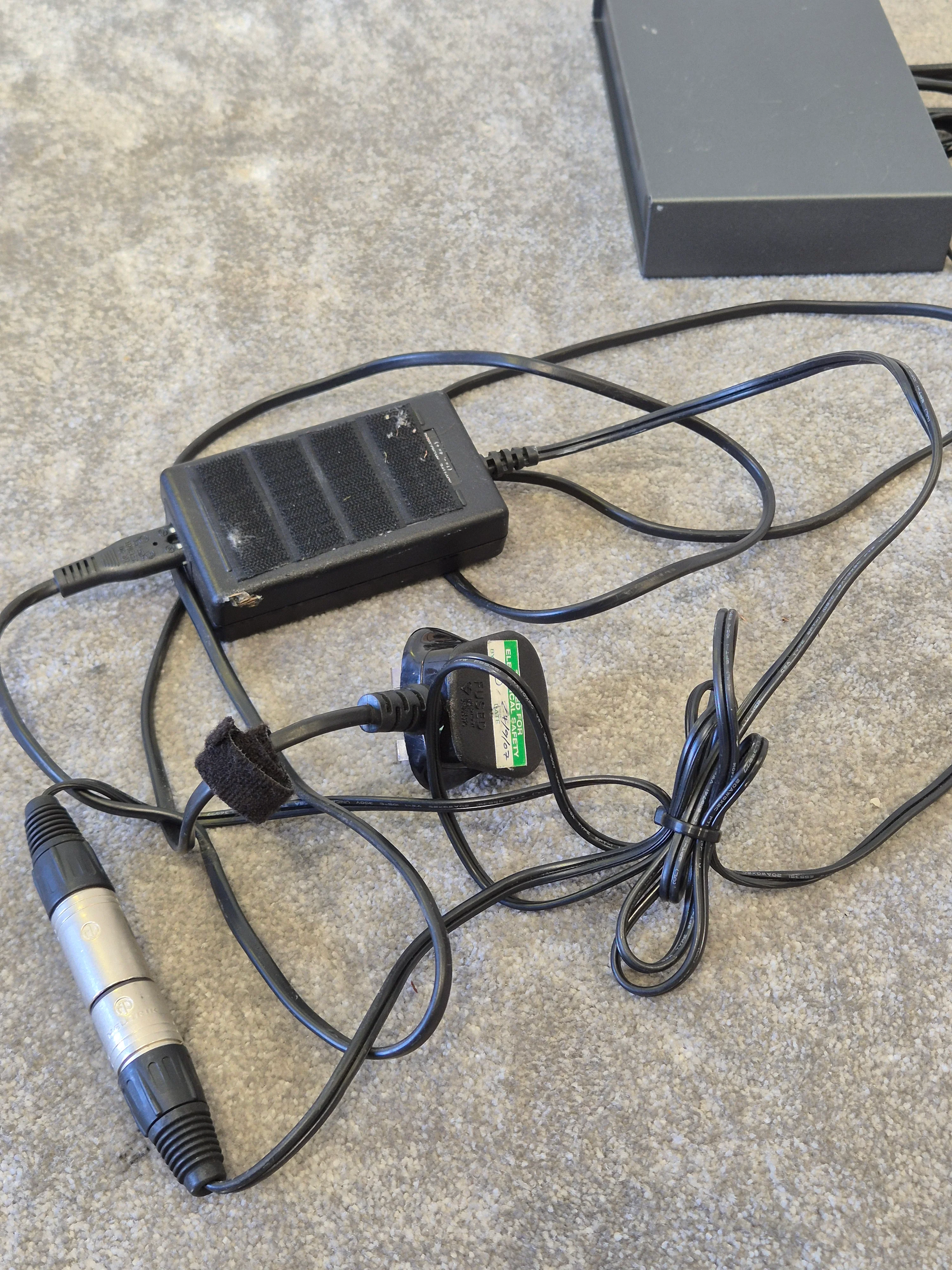

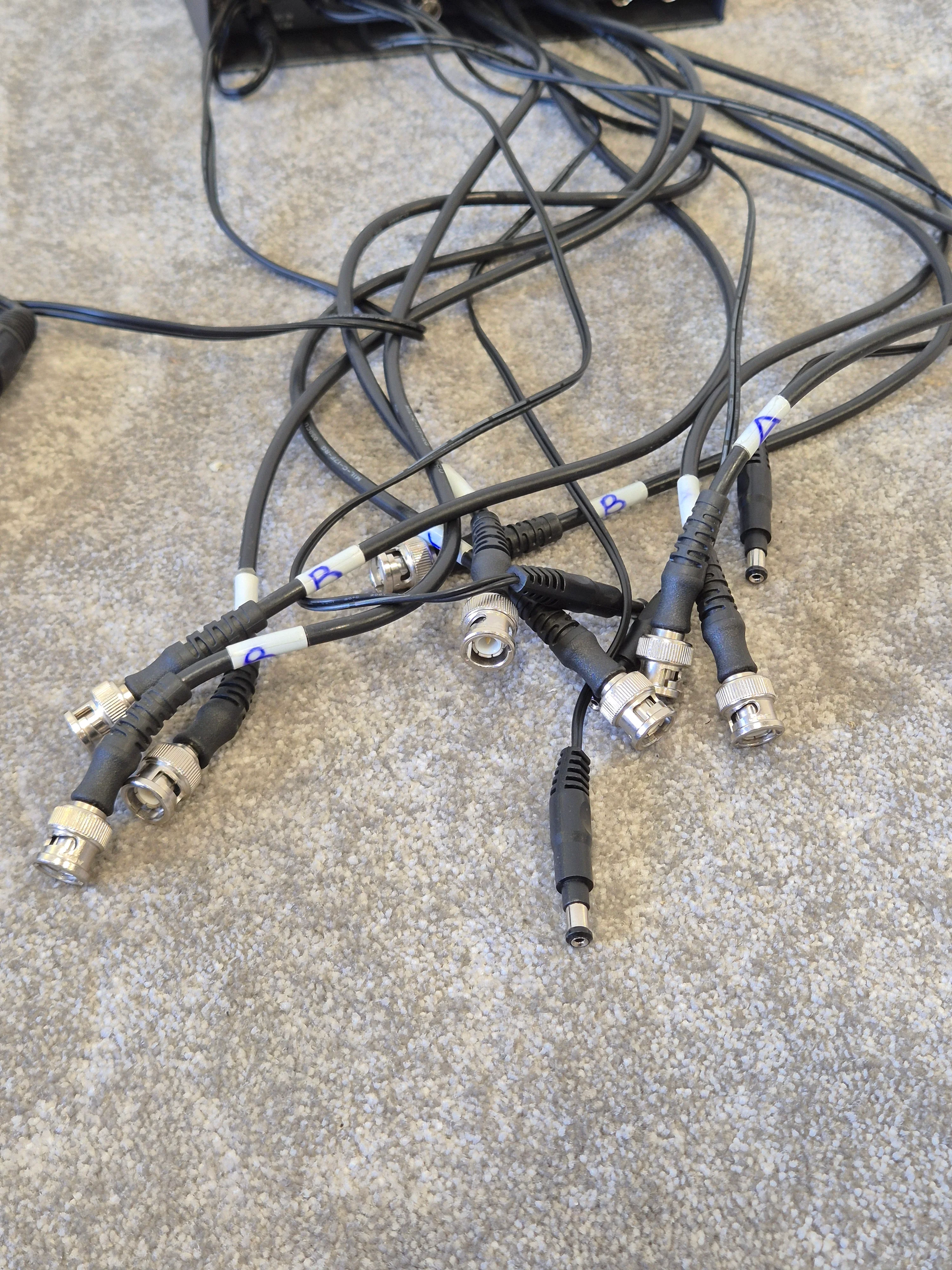

This product is in good condition with scratching around the body. This product has not been tested. Boxing is not supplied, but it comes with various cables including power cable.

Features

Passive RF antenna splitter – routes two antenna signals to up to four diversity receivers

2× 1-to-4 diversity configuration – supports up to four receivers from two antennas

Expandable – two ASP 1 units can be combined to support up to eight receivers

DC power distribution – supplies power to up to four receivers and two antenna boosters (via optional NT 1 power supply)

Compatible with Sennheiser EM 100, EM 300, and EM 500 receivers

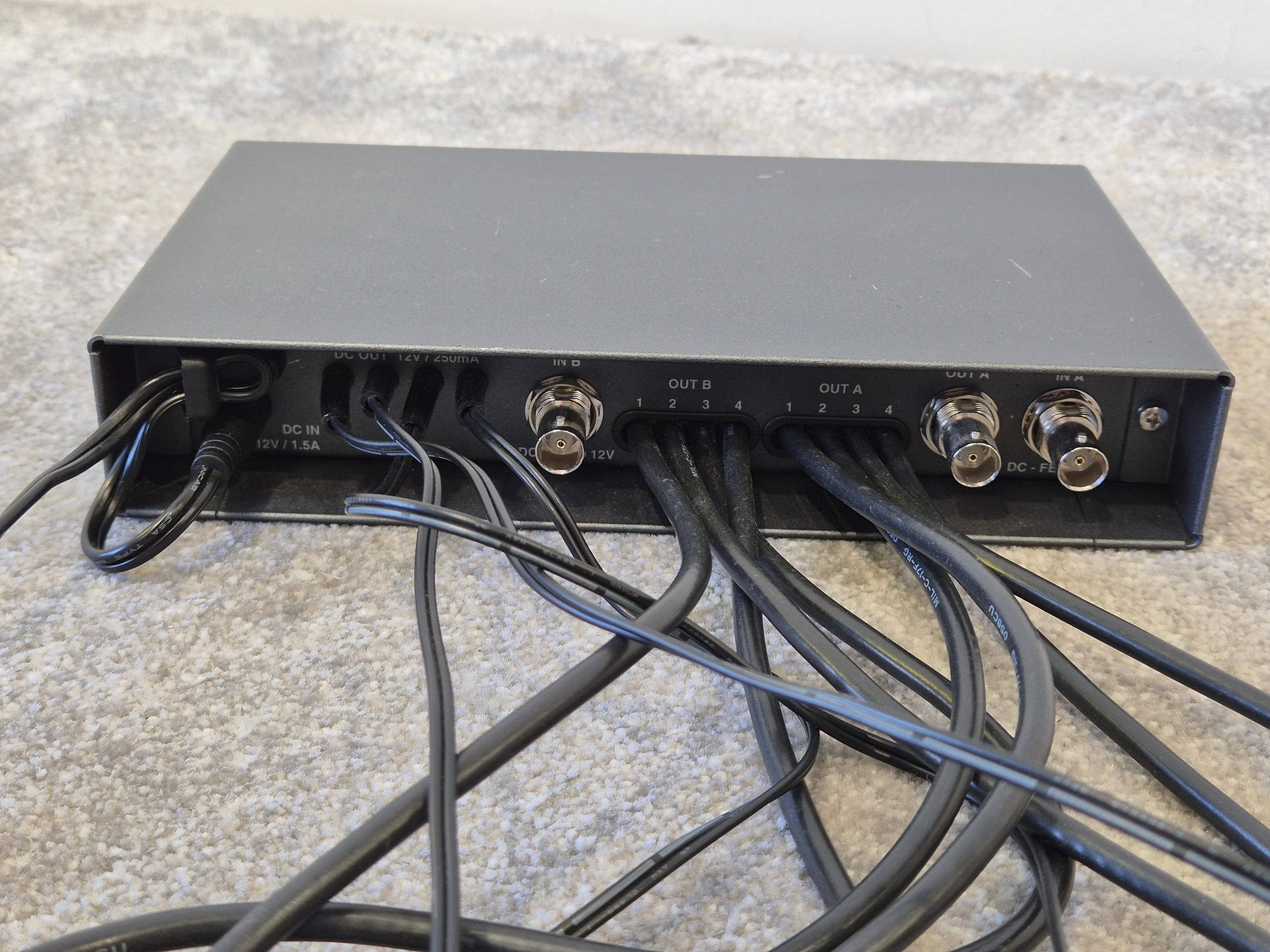

BNC connectors – 50 ohm impedance for standard RF cabling

Frequency range: 500 – 870 MHz

Typical signal attenuation: ~9 dB

Compact metal housing – 212 x 145 x 38 mm | Weight: approx. 800g

Rack-mountable with optional GA 1 adapter (not included)
