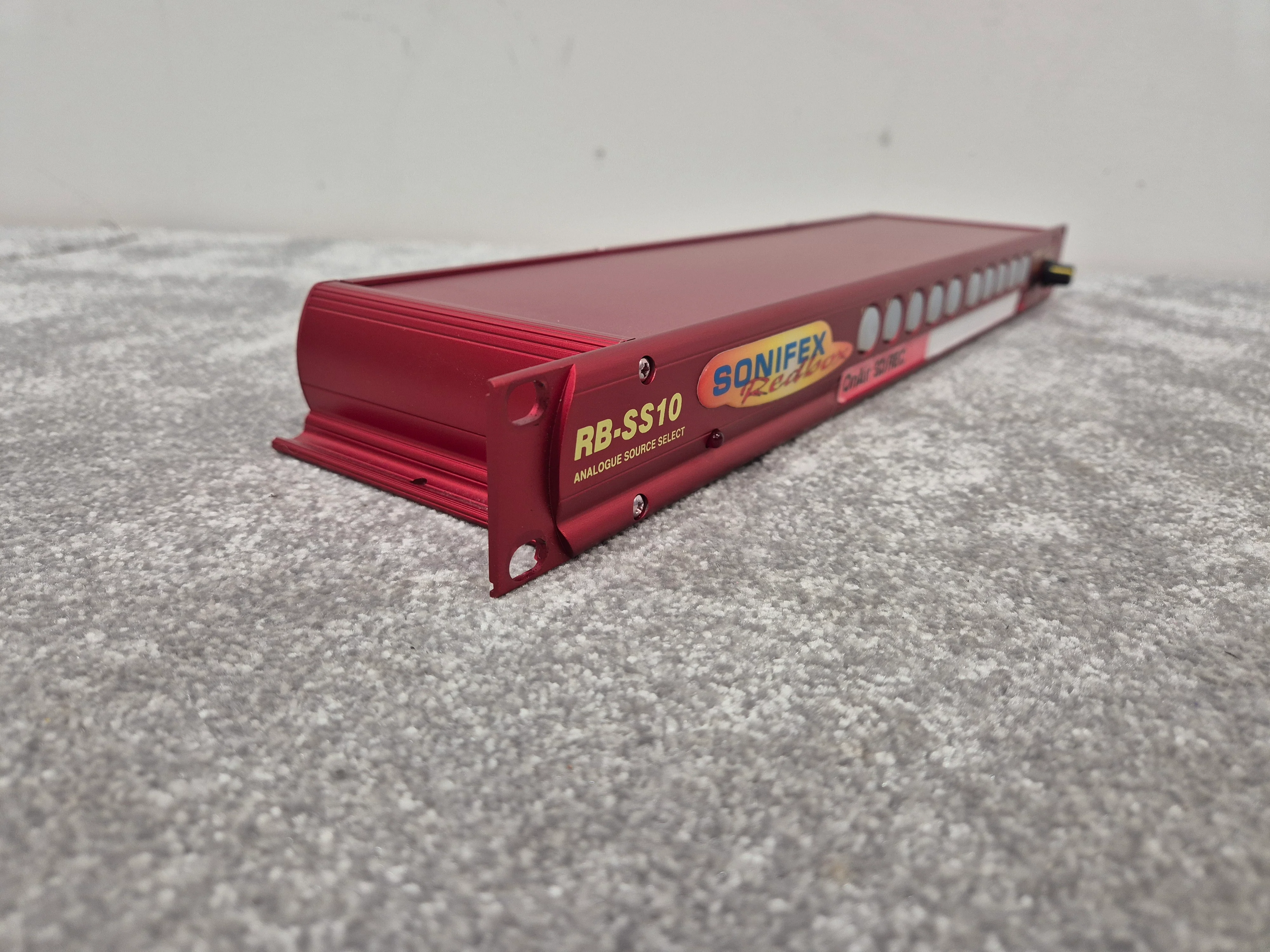

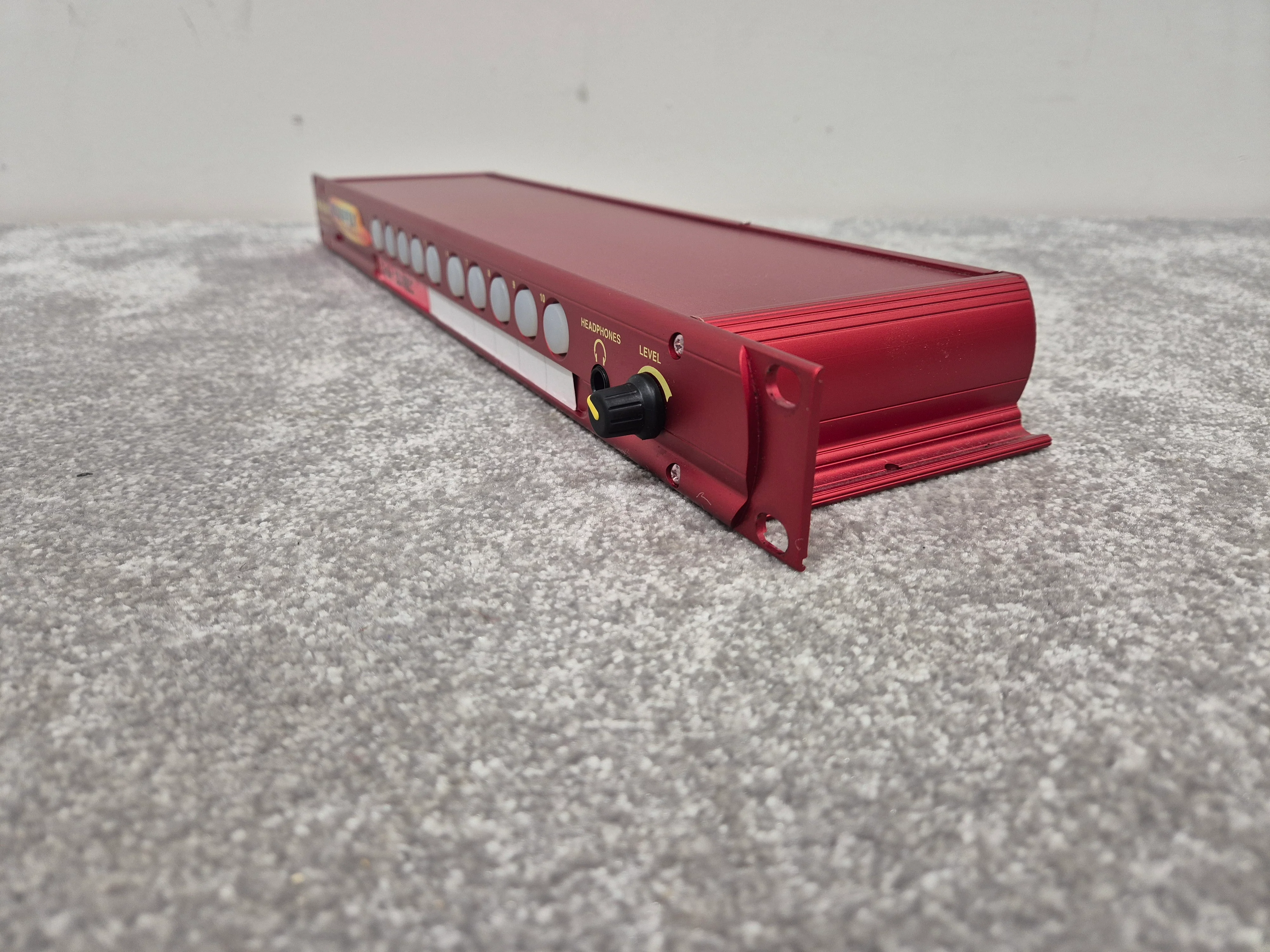

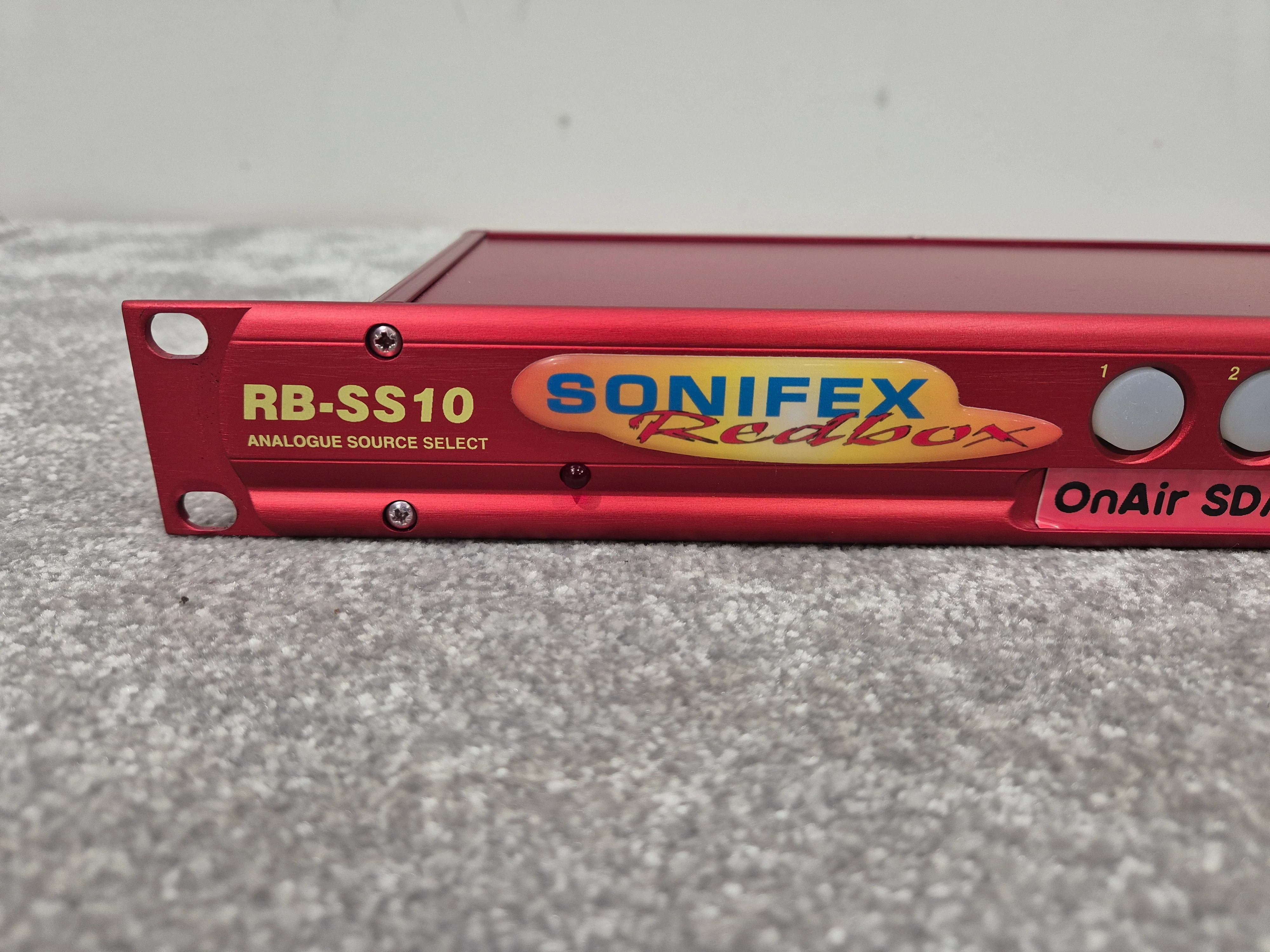

Sonifex RB-SS10 1U - Stereo Analogue Audio Processor

Mint overall condition. Fully tested and in working order.  Power cable not supplied.

Key features of the Sonifex RB-SS10:

• 10 Selectable Stereo Sources:

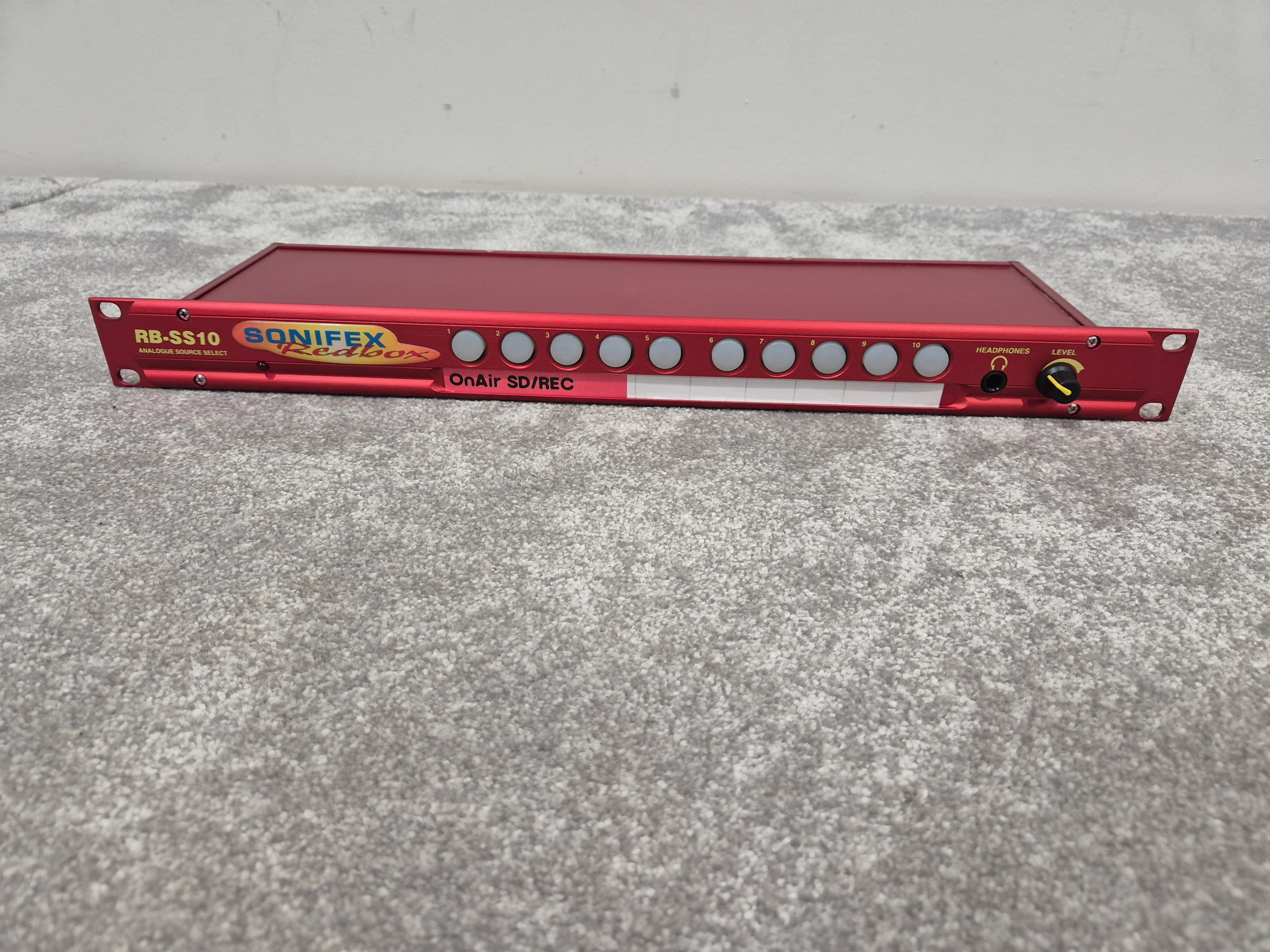

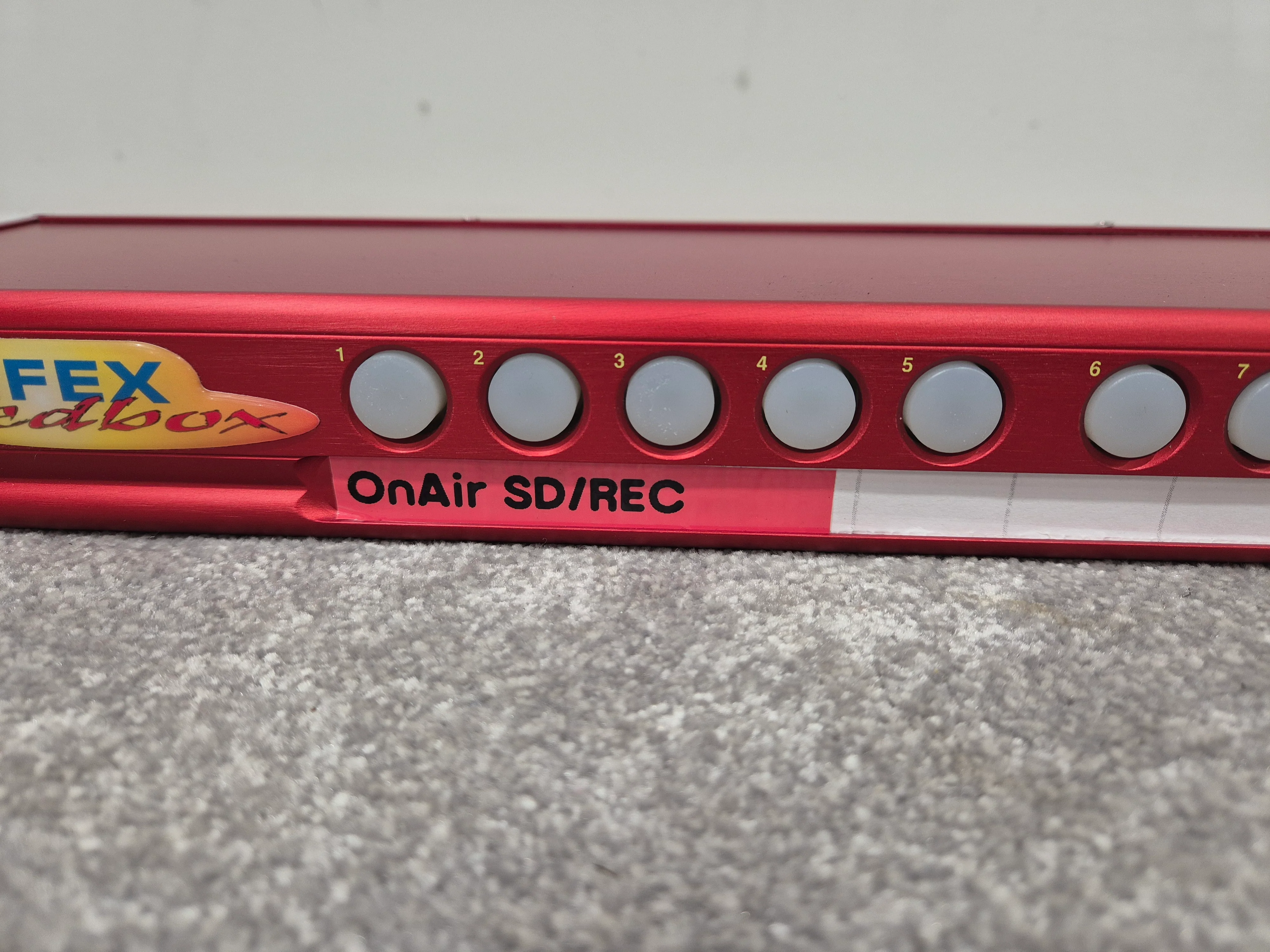

  • 10 illuminated front panel push-buttons for easy selection and indication of the current channel.

  • Two of the stereo inputs are on XLR, allowing for hot-plugging of audio sources like portable recorders.

• Remote Control:

  • Selection and indication can be controlled remotely via a connector on the rear panel.

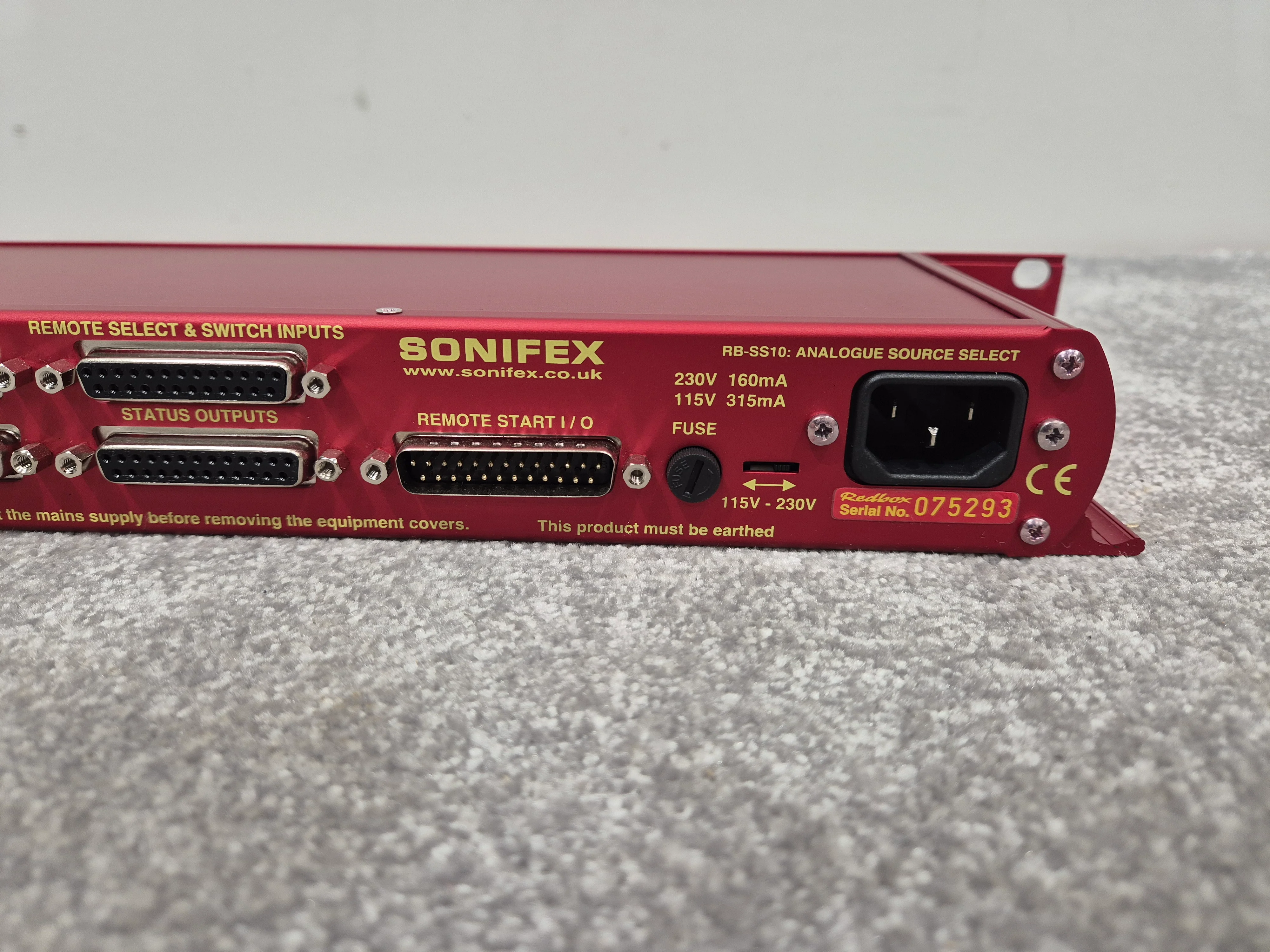

  • Remote start I/O and remote select/switch inputs via 25-way D-type connectors.

• Mix Mode:

  • Can function as a mixer by enabling the mix mode through a remote input.

• Individual Gain Control:

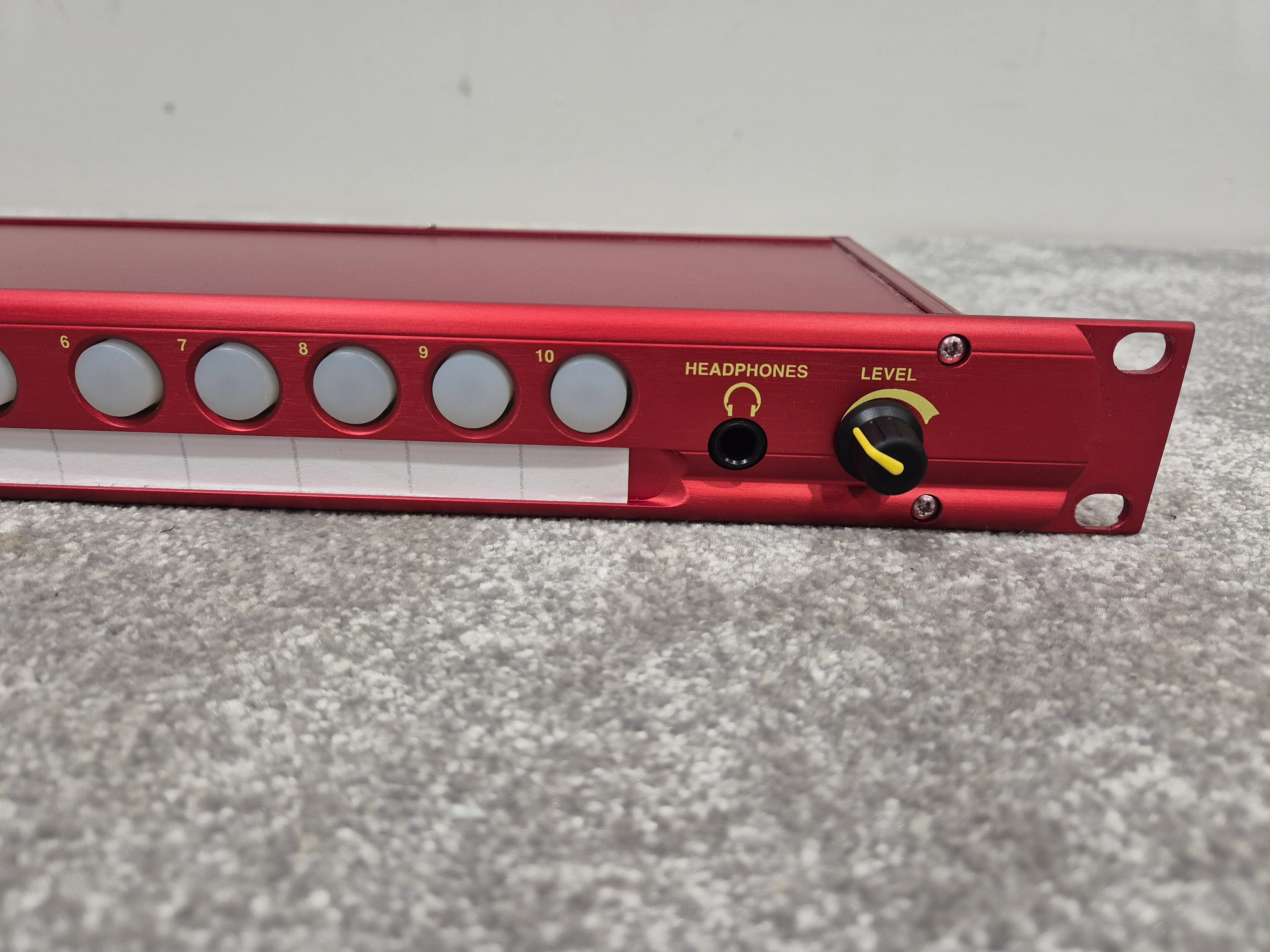

  • Left and right input gains can be individually adjusted using preset potentiometers on the front panel.

• Audio Quality:

  • Maximum input level: +28dBu

  • Maximum output level: +28dBu

  • Output impedance: < 50Ω

  • Input impedance: 20kΩ bridging

  • Frequency response: 20Hz to 20kHz ±0.1dB (600Ω load, ref 1kHz)

  • Noise level: -96dB unity gain ref +8dBu

• Connectivity:

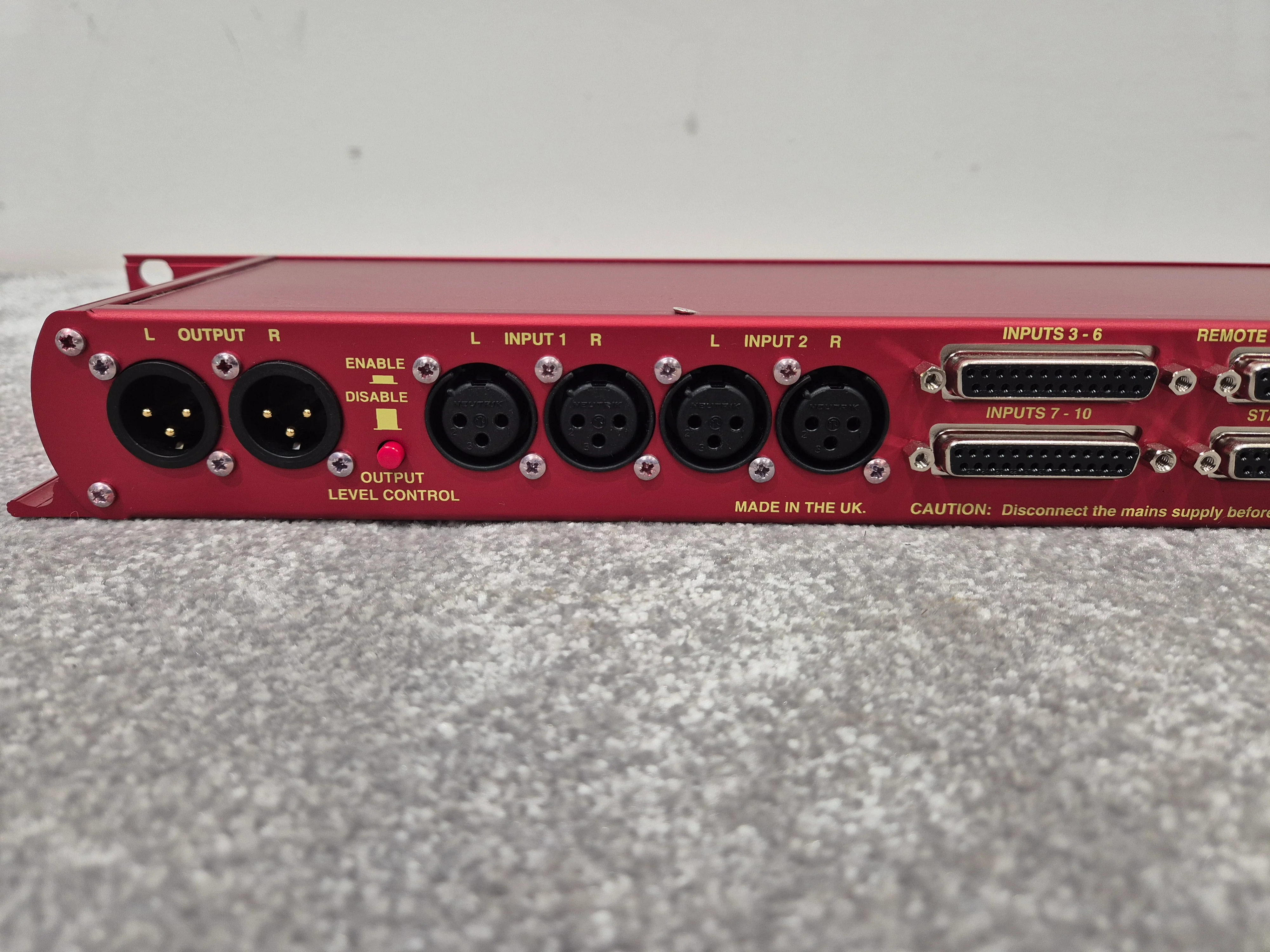

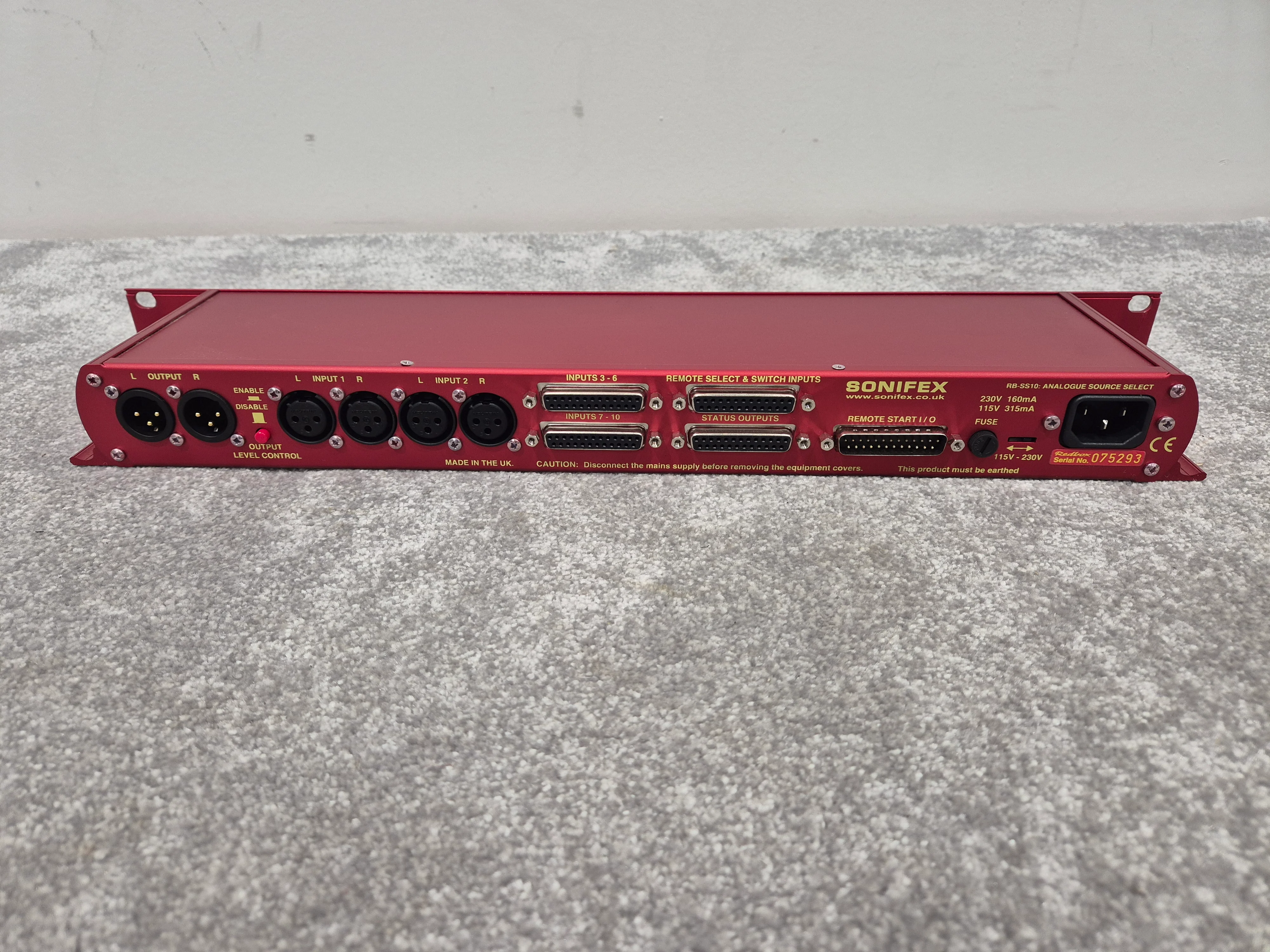

  • Inputs: 4 x XLR 3-pin female (2 x stereo) and 2 x 25-way D-type socket (female) providing 10 stereo balanced channels.

  • Outputs: 2 x XLR 3-pin male (stereo balanced, can be unbalanced).

• Power Supply:

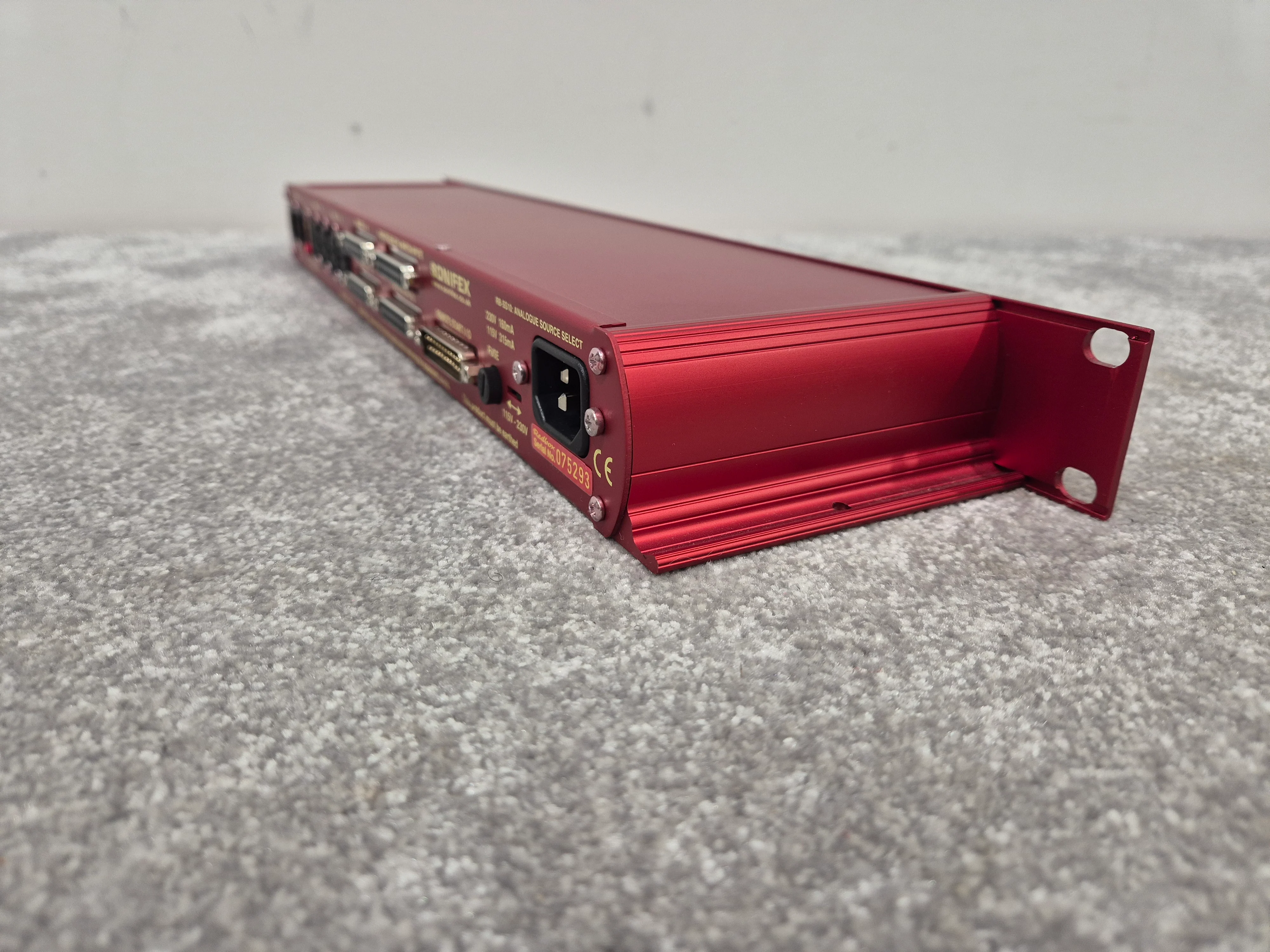

  • Filtered IEC connector with switchable mains input for 110V-120V or 220-240V.

  • Maximum power consumption: 6W.
